Tuesday, March 31, 2009

Music for the masses


I vaguely remember these guys from the 80's. Based on the other videos they were a pretty cool bunch.




From Reason (via the man)

First use of a nuclear weapon against the US...



will not be against the US mainland (by a foreign power as opposed to terrorist organization).   Rather it will be used at sea against a carrier task force.  This article seems to indicate a conventional weapon but I will bet my licence on the fact it is capable of a nuclear payload.

Short extract:

Translated by the naval affairs blog Information Dissemination, a recent report provides a description of an anti-ship ballistic missile (ASBM) that can strike carriers and other U.S. vessels at a range of 2000km.

The range of the modified Dong Feng 21 missile is significant in that it covers the areas that are likely hot zones for future confrontations between U.S. and Chinese surface forces.

The size of the missile enables it to carry a warhead big enough to inflict significant damage on a large vessel, providing the Chinese the capability of destroying a U.S. supercarrier in one strike.

Because the missile employs a complex guidance system, low radar signature and a maneuverability that makes its flight path unpredictable, the odds that it can evade tracking systems to reach its target are increased. It is estimated that the missile can travel at mach 10 and reach its maximum range of 2000km in less than 12 minutes.


The US Carrier task force is an unparalleled tool of state power.  It can go virtually anywhere on very short notice and deliver a serious blow to any modern state.  US air superiority is such that almost no nation can stand against even a single attack by our aircraft and standing against sustained attack is nigh impossible.  If you take out the carrier then you can by and large negate that advantage.  This makes a carrier battle group a high value target in a war against a great power like China or Russia.  First of all they are incredibly expensive to build  and operate (can't find the link now but something on the order of $1.5 Billion a year for the whole Battle Group).  This is an enormous sum of money.  Not only that it takes a long time to build capital ships of any sort and a carrier even more so, since we have limited number of ships available (12 or so) they are incredibly tempting targets.  Since  a nuclear strike can take out the whole group fast, with little chance of civilian casualties in a distant location with little or no physical evidence of the misdeed it is essentially a no lose situation for someone in a major war.   In the atmosphere these days what President is going to risk a general nuclear exchange?   This guy?  Doubtful.  So there you have it.  This is why a nuclear first strike against US naval assets is inevitable when we get into the next major war.

Tuesday, March 24, 2009

And how long will it be before Congress interferes here?



Senator Benjamin Cardin (D-MD) has introduced legislation to permit newspapers to continue to operate as non-profit businesses. Given the utter lack of transparency or accountability in the non-profit sector as it is this would be courting even greater politicization of the press.  Finally, do you want groups like the SEIU or ACORN controlling newspapers?

We've got six months to live!


God I love Rob Balder.

Monday, March 23, 2009

10 rights you don't have


As much as I like the Clash this is a much better statement on our (non)rights.

My favorite point:

3. You do not have a right to a retirement account provided by your children. You know that at some point in your life you will be old and won’t want, or be able, to work. Plan accordingly. The government does not have the right to steal from your children so that you can vacation in Florida every winter.
Thanks Monique

Created new site header

Little tricky getting the imagery just right.  Really wanted a picture of this, (specifically an aerial shot) but wasn't able to find a creative commons image.  I then wlooked around and found this picture by bitter girl.  Which then became the basis of the image in the header.

While this image may seem thematically linked to the name of the blog nothing could be farther from the truth.  One day I'll explain this but not today.

The mandatory Scrumpy and Western Video

Who Loves You Baby!


Sunday, March 22, 2009

The many uses of Duct Tape

Furniture repair.



Cupholders.


Holding things up.



Holding things down.


Scenes from the Comfy Chair Counter-Revolution


The Blog Father occasionally mentions the comfy chair revolution but some folks haven't gotten the message.




Ahhh...the Environment

Moe Lane has a great post on a recent Gallup Poll about how Americans feel about the Environment and the Economy.

Key Point:

This fairly elementary observation will no doubt infuriate environmentalists, who have been accustomed to being able to portray their beliefs as having an unimpeachable, universal morality.  Again, that is because they have been operating in a society that has thought itselfrich: now that it considers itself not-so-rich, certain priorities will be reconsidered over the next few years.  Including the priority of how important it actually is listen to environmentalists.
As the man says read the whole thing!

Deleted

Duplication of the Environmental post above.

My Lab Assistants

While constructing the Armstrong Twin I had for delightful assistants who were a great help to me during this project.


This is Sailor.

Try soldering while there are four of these guys down there doing the snout thing on your elbow and demanding attention right now.





Skeeter, Princess Pink, and the dog who will remain nameless.

Completed Armstrong Twin Photos and Final Thoughts




Well there you go.  The thing itself completed.

This project was for me fairly easy and a good way to get back to nuts and volts electronics after many years away.  This not a bad first build for any one just go slow and use some care in assembly.    If I could do anything differently it would be pay more attention to compenent position prior to soldering anything and give a little space around the penetrations in the casing to allow for washers and nuts.

The soldering also leaves something to be desired.  It could be more cleanly executed and the excess flux needs to be removed.  But the ultimate test is does it work and it most certainly did on the first try so what more needs to be said?

Armstrong Twin Construction #3


Per recommendations at BYOC board I prepared the True Bypass Footswitch with jumpers.



Next I prepared the power jack.  This was soldered on the vise and then the leads were fed in through the hole in the case.




A little fuzzy but you can see how the Output jack is connected to the Footswitch.



The completed assembly.

Armstrong Twin Construction # 2


This is the board with all components in place (except that busted diode).





A close up of the switch sockets after mounting.  Since th eswitch and toggle switch help hold the board in place they are mounted on the back of the board.   One note of caution: The holes are large in relation to the leads and if you are in cautious with the solder you'll end up with a bunch of it stuck up underneath the switch shorting out who knows what.  It's a major pain in the ass to remove.  Also getting all the pins lined up was a little tricky but patience and a pair of needlenose pliers will get it all right.




The completed board assembly with switch in place.


Armstrong Twin Construction

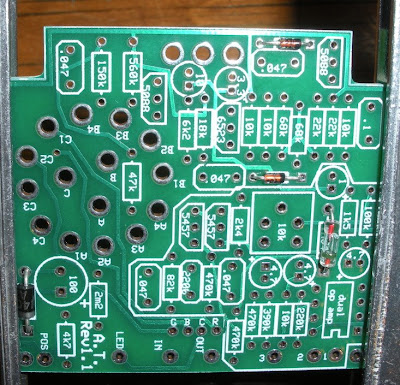

This is the board.  The first step in assembly is to populate it with components.  The directions aren't 100% clear but seem to indicate soldering components after each component type is placed in the board.  This view shows the first step with the diodes in and ready to be soldered.




As I was taught way back when the leads are crossed at about 45 degrees on the back.  This helps keep the parts in place before soldering and supposedly makes the joint more reliable.  You will also note some darks spots on the board.  That is excess flux but care is required lest you burn the board or worse yet cause the pads to lift from the board.





Of course I screwed up the very first joint (the large diode on the right mid board).  I had to remove this diode and replace it.  Fortunately the 1N24A is very common component and was available at the local Fry's.




A close up of the sad corpse of the diode.

Friday, March 20, 2009

A great piece on gay marriage

Cynthia over at A Conservative Lesbian has a great piece on gay marriage.

One of the most disheartening things about the passage of Proposition 8 is the utterly unhinged behavior of gays and their supporters.  Creating maps, hounding Prop 8 supporters out of their jobs, and targeting business owners who made contributions to the Prop 8 campaign is foolish and counterproductive.  Furthermore, it cuts the legs out from under folks like me who have argued in favor of gay marriage.  Let me tell you when someone like me (mid 40's, WM and very conservative) makes a principled stand for gay rights as a civil right people pay attention.  They might not agree today (or ever) but at least they can begin to be pursuaded.  But not if gay rights advocates act like spoiled children.  You lost in one of the most liberal states in the union.  That means you need to make better arguments for your position.  You need to educate and reach out to to different community groups and reassure them that your right doesn't interfere with their religious freedom.  That doesn't mean get on the back of the bus or that gays must be satisfied with scraps from the table of liberty, rather that they should prepare themselves and the field for another try.  This means educational outreach, fund raising, and reaching out to friends and finding new allies in unexpected places.

Thursday, March 19, 2009

The best thing I've seen all week


Look I don't know what is right with this AIG mess but I do know that the legislative lynching that occurred today was wrong; a danger to the rule of law;  and  a hazard to us all.




Wednesday, March 18, 2009

Cool Video of the Moment

I don't know what it is about Tom Jones but he is a very cool cat. Here's is a bit he did with the Cardigans I stumbled on when randomly poking youtube.
Enjoy!

Monday, March 16, 2009

Armstrong Twin #4

No pictures today, it's late, I'm tired and GIMP is kind of a pain in the ass.

I'm actually a couple of days behind.  Yesterday I populated the circuit board, cracking a diode in the process.

So today had to troop down to Fry's to locate a replacement part and some cleaning supplies.

Got the board mounted and about half the wiring harness built.  Will complete tomorrow and hopefully finish up.

Edited to correct spelling.

Sunday, March 15, 2009

Armstrong Twin #3 -The Workspace


Above is the workspace I am using today.

A lot of folks think that they need a special place to work.  In fact this can frequently become an obstacle to attaining some long desired goal.  We can can become bogged down believing that if only I have the perfect music room/workshop/study/garage/tools I will be able to write that perfect song/build that doohickey/novel/classic car.  This is (mostly) bullshit.  Stephen King wrote his first novel in his laundry room, JK Rowling wrote in coffee shops, Piers Anthony does all his first drafts on yellow legal pads, Sargent Pepper was a 4 track album, and some of the most beautiful art and scuplture has been produced without the least access to modern tools and chemistry.  Most important is the desire to succeed.

In my case I am living an itinerant lifestyle until summer.  My home is rented out and I am waiting until summer to buy a new place.  So every tool I own is in a box somewhere.  To make this kit I needed to use only tools I could buy inexpensively or could borrow.

The most important item is something to hold the circuit board.  This is something I couldn't borrow and was the most expensive item to buy.  Since I don't already own one it was not a foolish expense but at $70 was the most expensive single item.  It is a Panavise model 324 electronic work center.  After having used it I would say that the most useful feature is the parts tray base and the board holder.  But they are also expensive enough by themselves that even if you throw away the soldering iron and solder roll holders it would still be cheaper than buying the pieces separately.

The next most important item is the soldering iron.  For electronic work you want something in then 25-30 watt range.  I chose a Radio Shack 15/30 watt switchable.  Would have preferred a Weller Iron but when I went to Fry's the soldering iron section looked like it had just been visited by the Huns the only stock on hand were some very sketchy chinese irons and a few Weller Irons that were simply too large.  I bought nothing and left most dissatisfied.  Instead I reluctantly went down the street and spent $50-60 at Harbor Freight and another $60 at Radio Shack.

The other items are all fairly basic hand tools that can be pruchased almost anywhere.  For the most part they were purchased at Harbor Freight.  Although cheap they seem to be ok except for the lighted magnifying glass.  It is simply too heavy to be supported by the neck joints of the neck.

Solder and the specialized soldering tools are Radio Shack.  I prefer silver solder it creates a better contact and just seems to work better for me.  Plus it's just not that much more expensive.  The only draw back is that the sizes available were very fine and that makes it a little more difficult to work with.

Finally the space is the kitchen table at my brothers house.  (Don't tell his wife)  Convenient to the bathroom, refrigerator, and 4 dogs who all like to demand attention when delicacy is required.



Armstrong Twin #2




The first step was fairly simple.  Paint the enclosure.  Used Krylon Primer (3 coats), Gold (5 coats), and Gloss Clear Coat (3 coats).  Plus my primitive Sharpie applied graphics.

Using spray paint is one of the easiest ways to apply paint to metal.  But it is easily screwed up as well.  The trick is to paint multiple thin coats using 2-3 second bursts as you sweep the piece with the paint.

Optimally the work piece should be suspended on a wire or hook to get the best coverage and prevent sticking.  That was not an option for me so I improvised a spray box out of a used cardboard box.



Build your own clone Armstrong Twin Project

Saw an article in Premier Guitar a few months ago about this company that designs and sells guitar stomp box kits.  I have been wanting to make my own effects for some time now and was inspired to give it a go.  This series of entries will chronicle my efforts in constructing a BYOC Armstrong Twin kit.

The Armstrong Twin is BYOC'c version of the Dan Armstrong Orange Squeezer combined with his Green Ringer.  The originals were manufactured in the mid-seventies and have been long out of production.

The Orange Squeezer is a basic compressor.  The Green Ringer is a ring modulator although it is said (I have no idea personnally) to sound more like an Octavia.
